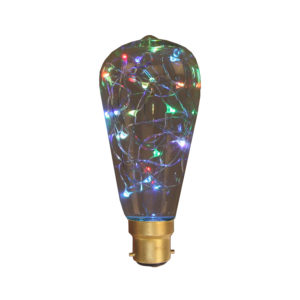

ST64 RGB String Decoration LED Bulb
Click to enlarge

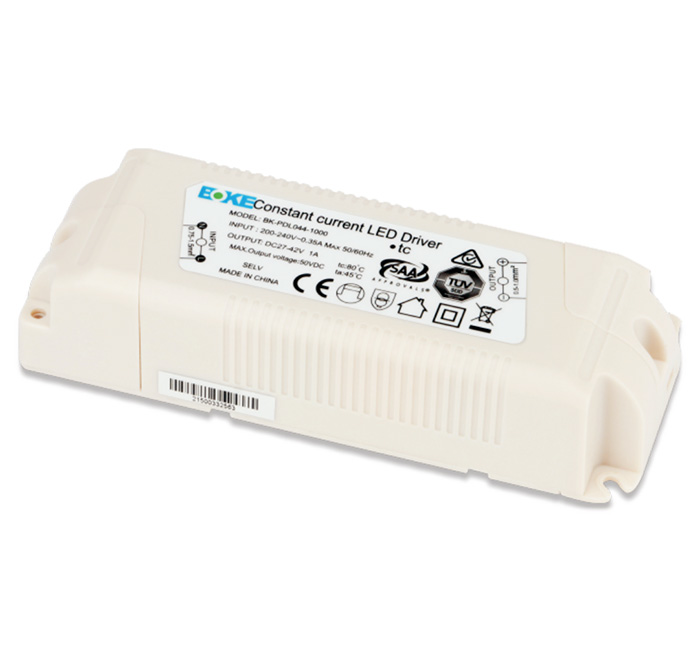

LED DRIVERS – PDL SERIES for Panel Economy Type



  • Input Voltage 180-265VAC, withstand 380VAC high voltage short-time shock.
  • Built-in active PFC function
  • Protection: SCP/OCP/OVP/OTP
  • Cooling by free air convection
  • Suitable for indoor
  • Class II power unit: L N
  • Suitable for indoor LED lighting applications
  • 3/5 years warranty
  • Series power supply:10W/22W/40W/44W/54W
  • Compliance to:TUV-CE、CB、SAA、RCM、CCC



Category:
Description

Description



Parameters:

  • Input Voltage：200-240VAC
  • Harmonic Current：<15%
  • Working Temperature：-20~45℃
  • Environmental Protection：RoHS
  • Dimmable Mode：N/A
  • Electromagnetic Emission：EN55015 / GB17743 / EN61000-3-3 / EN61000-3-2 / CLASS C
  • Safety standard：EN61347-1 / EN61347-2-13 / GB19510-1 / GB19510-2-14
  • Power Factor：>0.9
  • Protection：SCP/OCP/OVP/OTP
  • Storage temperature：-40~80℃
  • Life span：30000H&45℃ <MIL-HDBK-217F>
  • Hi-pot： I/P-O/P：3750VAC
  • Electromagnetic Interference：EN61547 EN61000- 4-2,3,4,5,6,8,11
